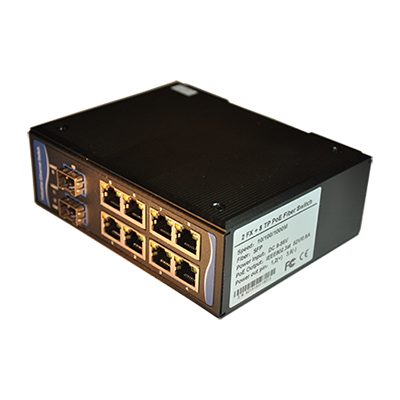

English– 8×10/100/1000Base-TX RJ45ports,2x1000Base-FX FastSFPports
– SupportAuto-MDIX, and full/halfduplex self-negotiationmode
– ProvideSC/FC/ST/LC interfacefiber port,supportsingle/dual fibertransmission
– Support16Kbytes giant frame, compatiblewithvarious extensionprotocol
– 8KMAC addresstable – SupportIEEE802.3az energy efficientEthernet technology
– SupportIPv6 Protocol
– Electric 4KVsurgeprotection, easy touseinoutdoorenvironment
– Completestatusindicator,workingstateat aglance
– Power input polarity protection design,noworry about wrongoperation
– Metalcase,nofandesign – Installationmethod:DIN trail/Wallmounting
Açıklama
Specification
Specification
Physical Port
RJ45portand speed
8×10/100/1000Base-TX
Fiber portand speed
2x1000Base-FXSFP
Parameters Ethernet standards
IEEE802.3IEEE802.3uIEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ahIEEE802.1X
IEEE802.1Q Packetbuffer 4Mbits Maximum packet length Up to1532Bytes MAC addresstable 8K
Transmission mode StoreandForward(full/halfduplex mode)
Exchangeproperty
Delaytime: <7μs Backplanebandwidth:1Gbps Packetforwardingrate: 148810(64Byte)
PoE PoE standard 8x IEEE 802.3af/IEEE 802.3atPoE Power budget Max. PoE outputpower budget30W LED
Indicator Power Connect-always RJ45 Link/Act:connect-always;dataexchange-twinkleSpeed light:100Mbpsalways;10Mbps-twinkle Fiber Link/Act:connect-always;dataexchange-twinkle Power Information Power
access mode Phoenixterminal, DC seat Redundantpower input DC 9-56V Overloadprotection Yes Power
reverse Support Power consumption Full-load<15W
